Exclusive: I9505XXUFNA5 – Leaked Android 4.4.2 KitKat Test Firmware for Galaxy S4 (GT-I9505)

Samsung recently officially started rolling out the new Android 4.4.2 KitKat update to the Galaxy Note 3 LTE (SM-N9005), but it looks like a little more work is needed before the particular update hits the Galaxy S4. So, we thought let’s bring you guys a new test build for your Galaxy S4 (GT-I9505) – I9505XXUFNA5, until Samsung makes your official update ready.

We are expecting Samsung to start officially rolling out the Android 4.4 KitKat update for the Galaxy S4 in February/March. We have tested the new test firmware for a few days and we can confidently say that it’s much better than the previous test build. Along with many bug fixes and speed improvements, the new firmware, finally, fixes the nasty multi-tasking bug which was present in the previous leak.

There are minor UI changes in Android 4.4.2 KitKat, the most noticeable being the status bar icons being changed from Gingerbread style green to all new awesome KitKat style white. BTW, white icons look stunning on top of the transparent status bar. We have seen a little bump is performance, and benchmark scores have slightly increased as well. Samsung’s keyboard layout has been improved in landscape orientation, which makes typing much easier and gesture typing works really well too. Samsung has implemented a camera shortcut direct on its lockscreen.
S4-KitKat
Model: GT-I9505
Country: Open Europe
Version: Android 4.4.2
Changelist: 373648
Build date: Tue, 14 Jan 2014 01:35:41 +0000
Product Code: OXA

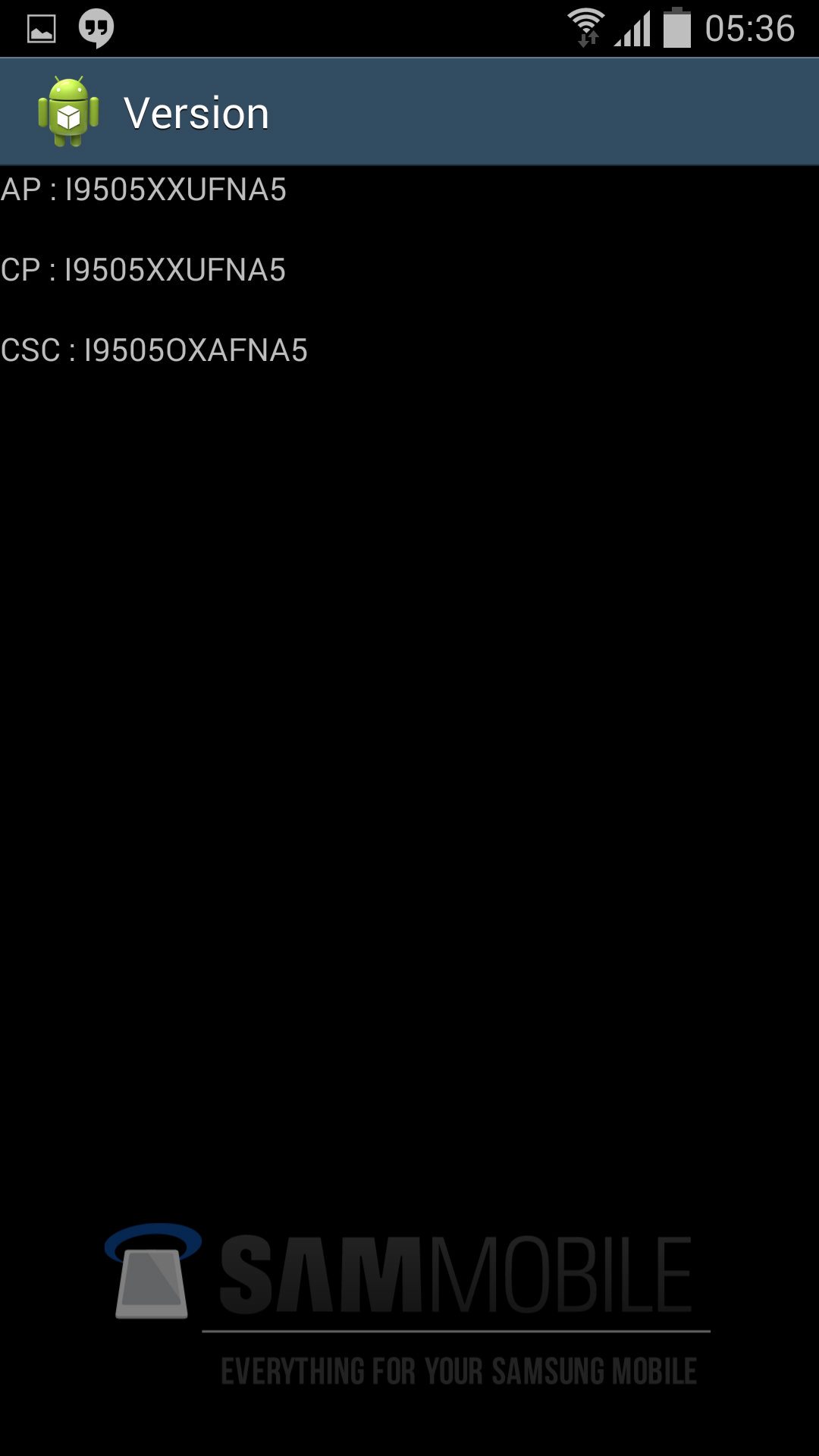

PDA: I9505XXUFNA5
CSC: I9505OXAFNA5
MODEM: I9505XXUFNA5
Download: I9505XXUFNA5_I9505OXAFNA5_I9505XXUFNA5_OXA.zip

NOTE
- This test firmware WILL wipe your data. So, back it up!
- You are doing this at your OWN risk. We are not responsible if you brick your device or your cat eats your phone.
- This test firmware will NOT increase your binary counter NOR void your warranty.
- This test firmware is a pre-release build and not official from Samsung.

INSTRUCTIONS
- Extract (unzip) the firmware file
- Download Odin3 v3.09 (From here or here)
- Extract Odin .ZIP file
- Open Odin3 v3.09
- Restart phone in download mode (Press and hold Home + Power + Volume down buttons)
- Connect phone and wait until you get a blue sign in Odin
- Add AP_I9505XXUFNA5_373648_REV06_user_low_ship_MULTI_CERT.tar.md5 to AP
- Add BL_I9505XXUFNA5_373648_REV06_user_low_ship_MULTI_CERT.tar.md5 to BL
- Add CP_I9505XXUFNA5_373648_REV06_user_low_ship_MULTI_CERT.tar.md5 to CP
- Add CSC_OXA_I9505OXAFNA5_373648_REV06_user_low_ship_MULTI_CERT.tar.md5 to CSC
- Make sure re-partition is NOT ticked
- Click start button, sit back and wait a few minutes.
- If you encounter any issues with the firmware (Any FC, Bootloop etc)
- Boot into recovery mode (Home+power+vol up)
- Choose to wipe/factory reset. (THIS WILL ERASE ALL OF YOUR DATA INCLUDING YOUR INTERNAL SD CARD!)
- Then choose reboot and you should be good to go!

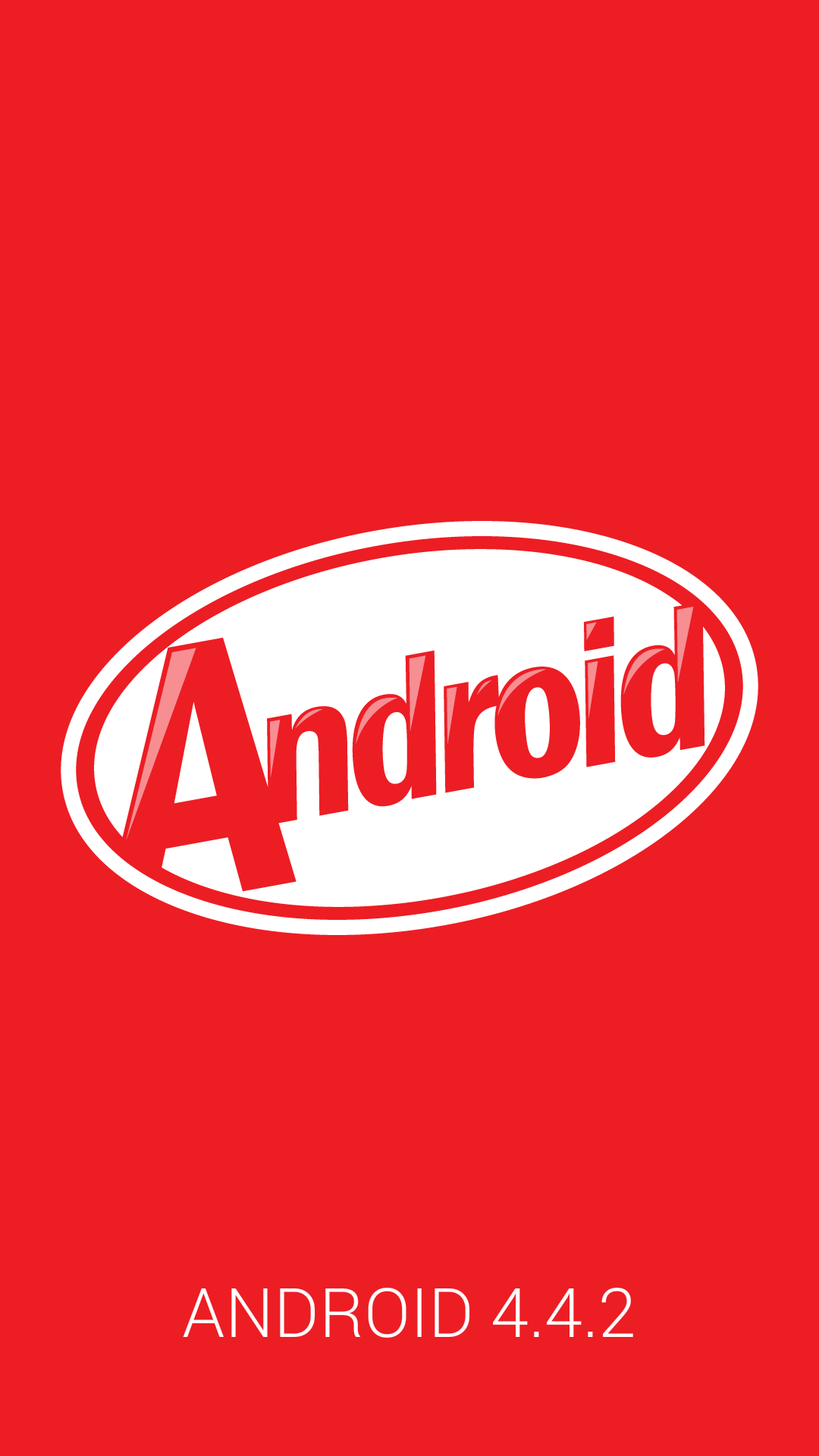

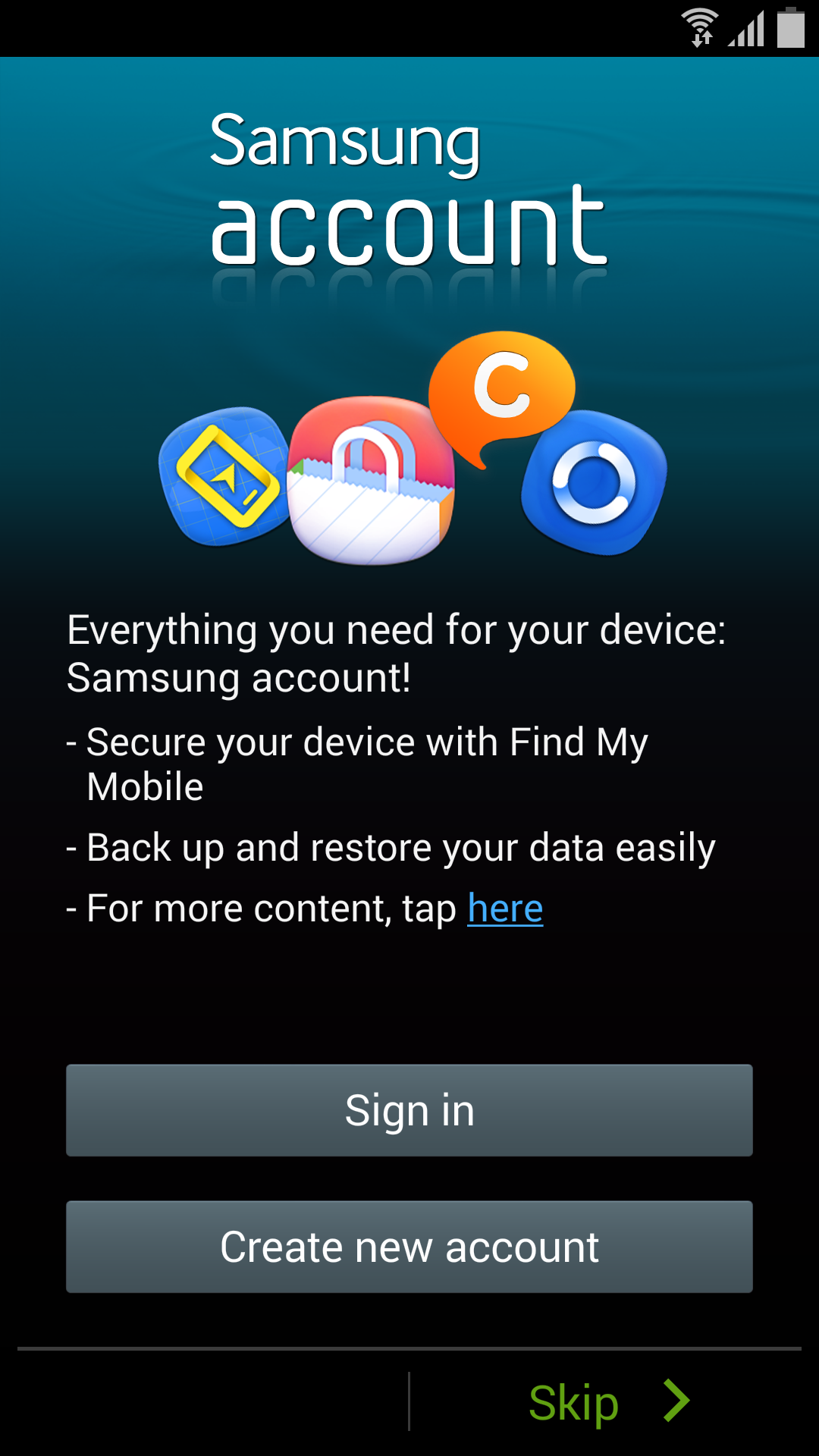

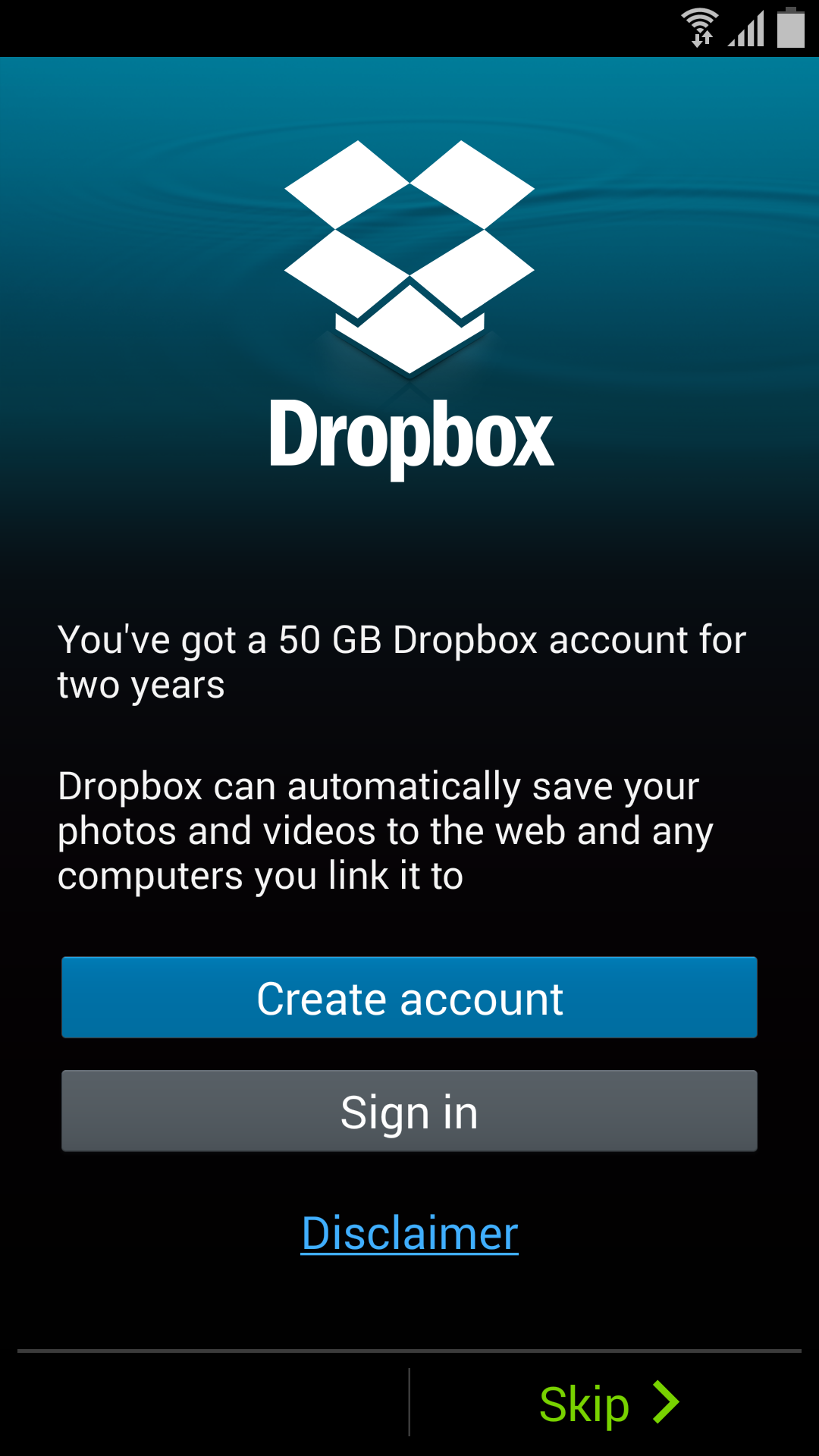

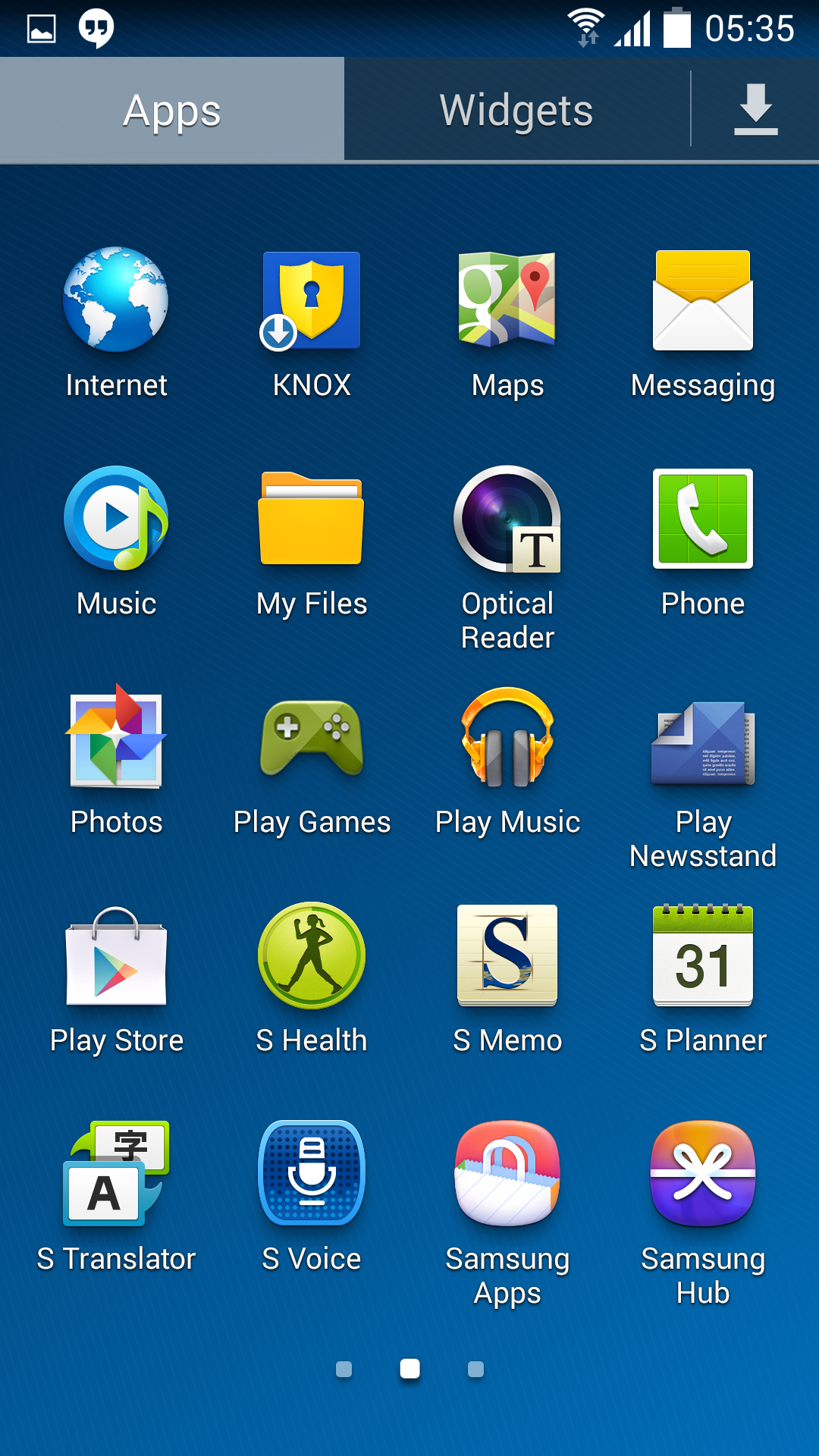

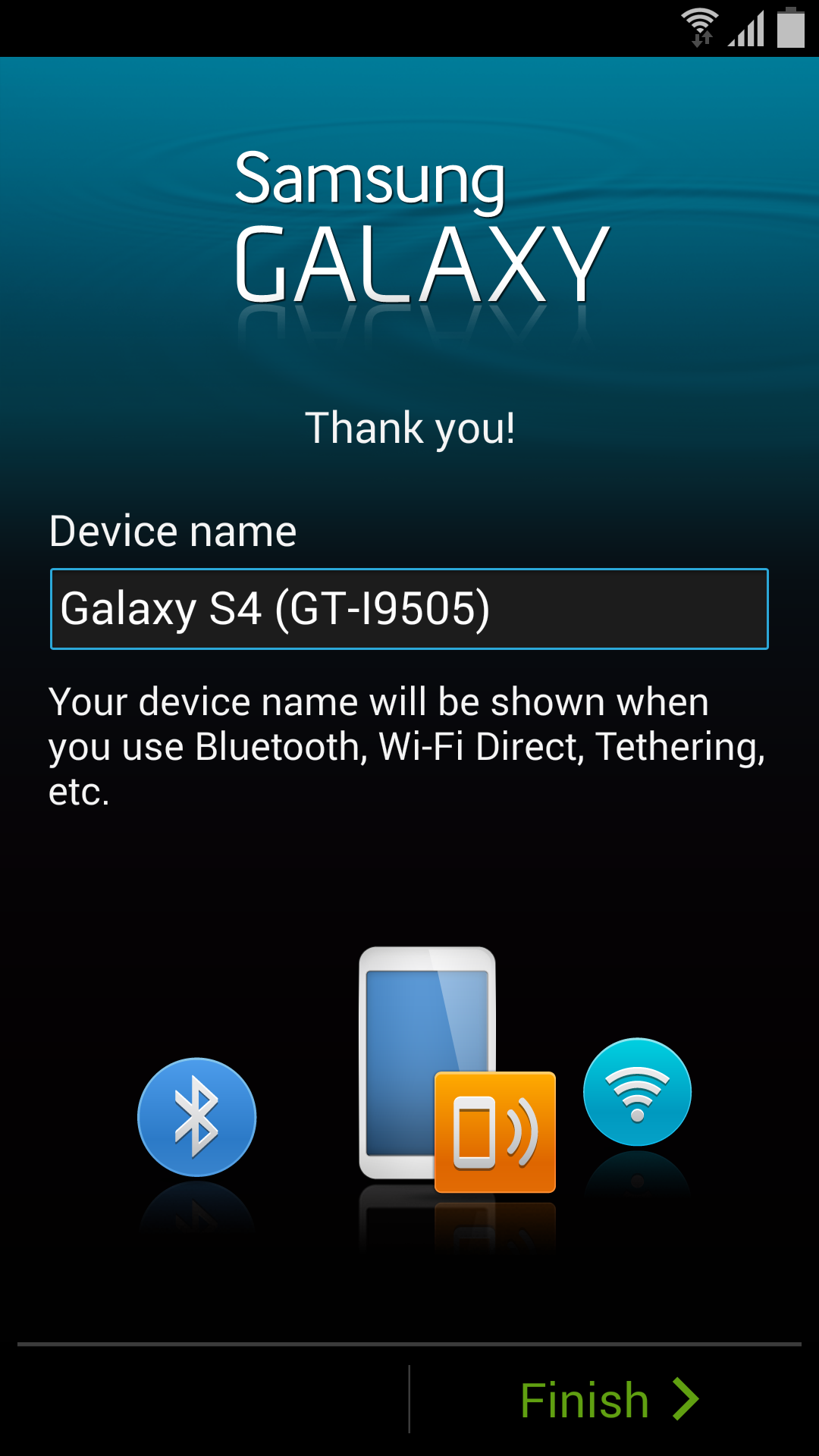

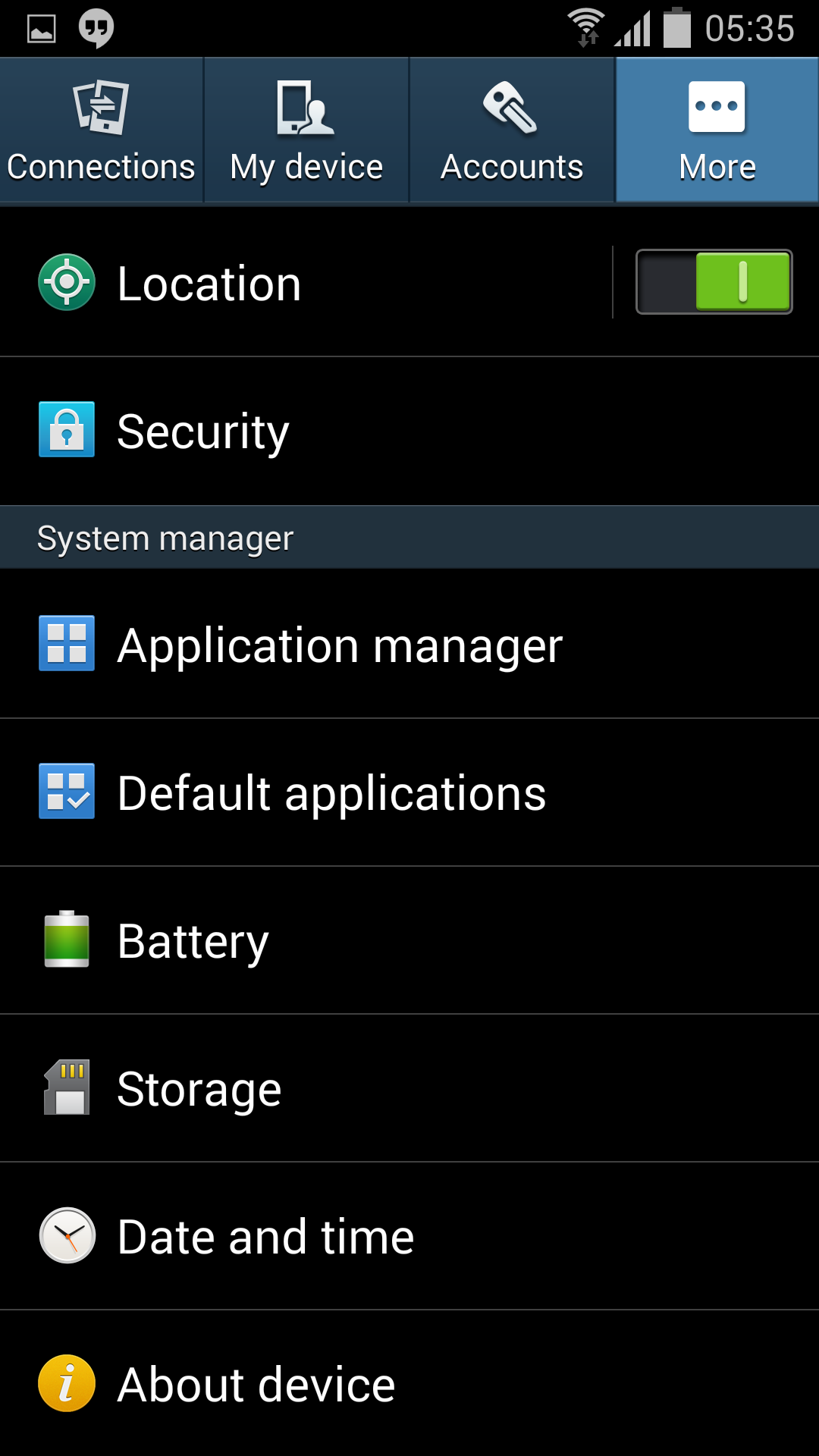

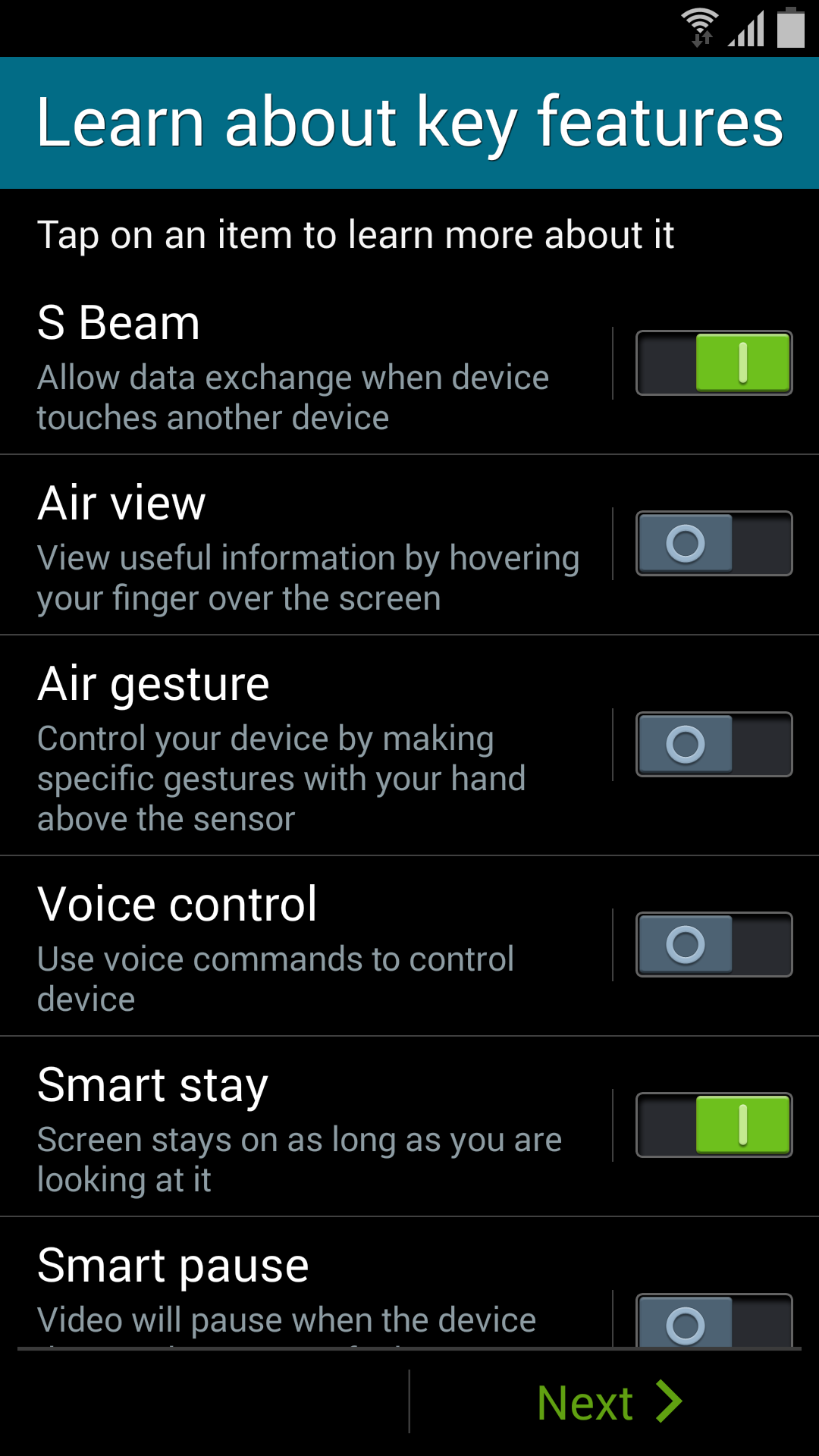

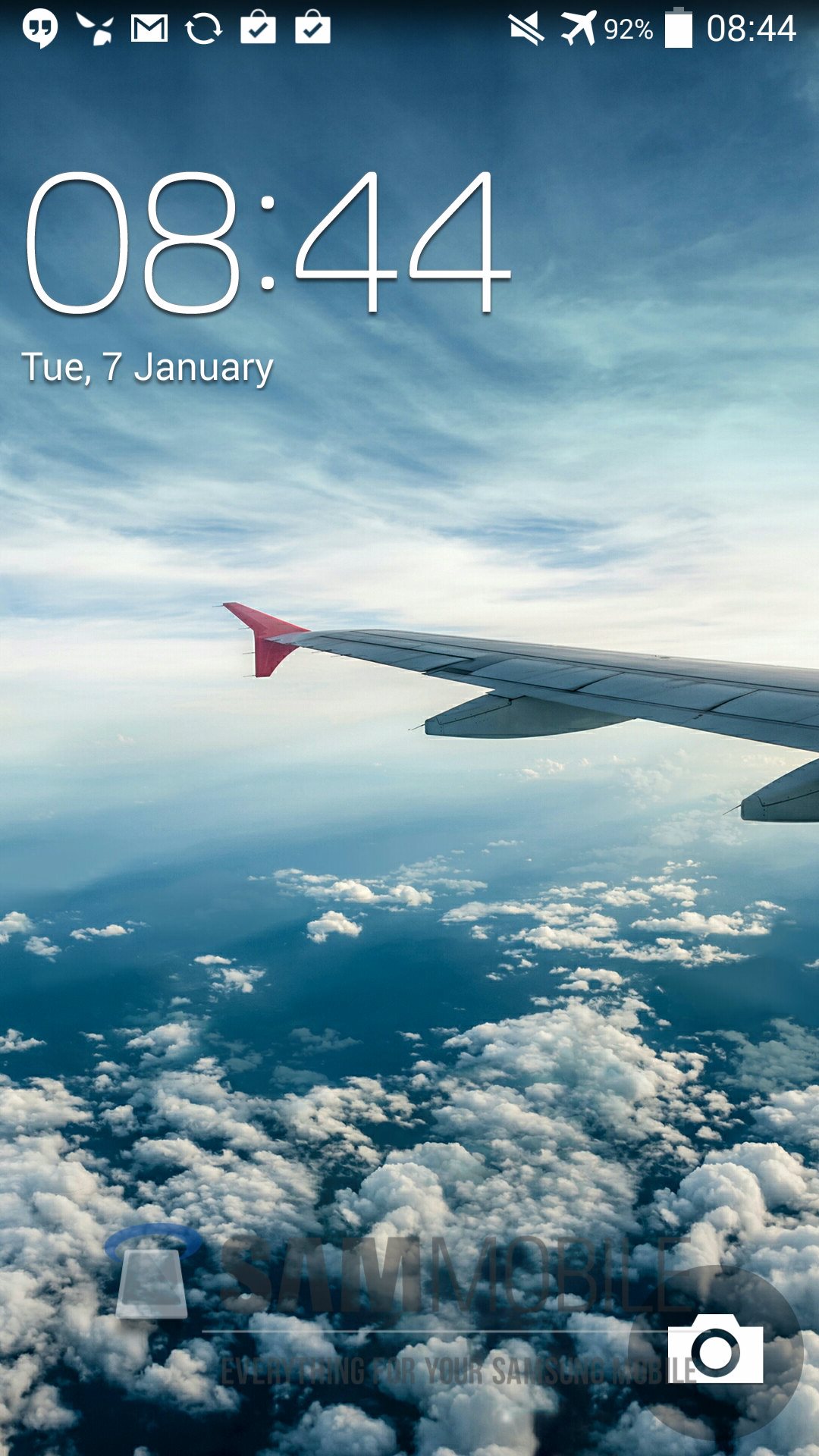

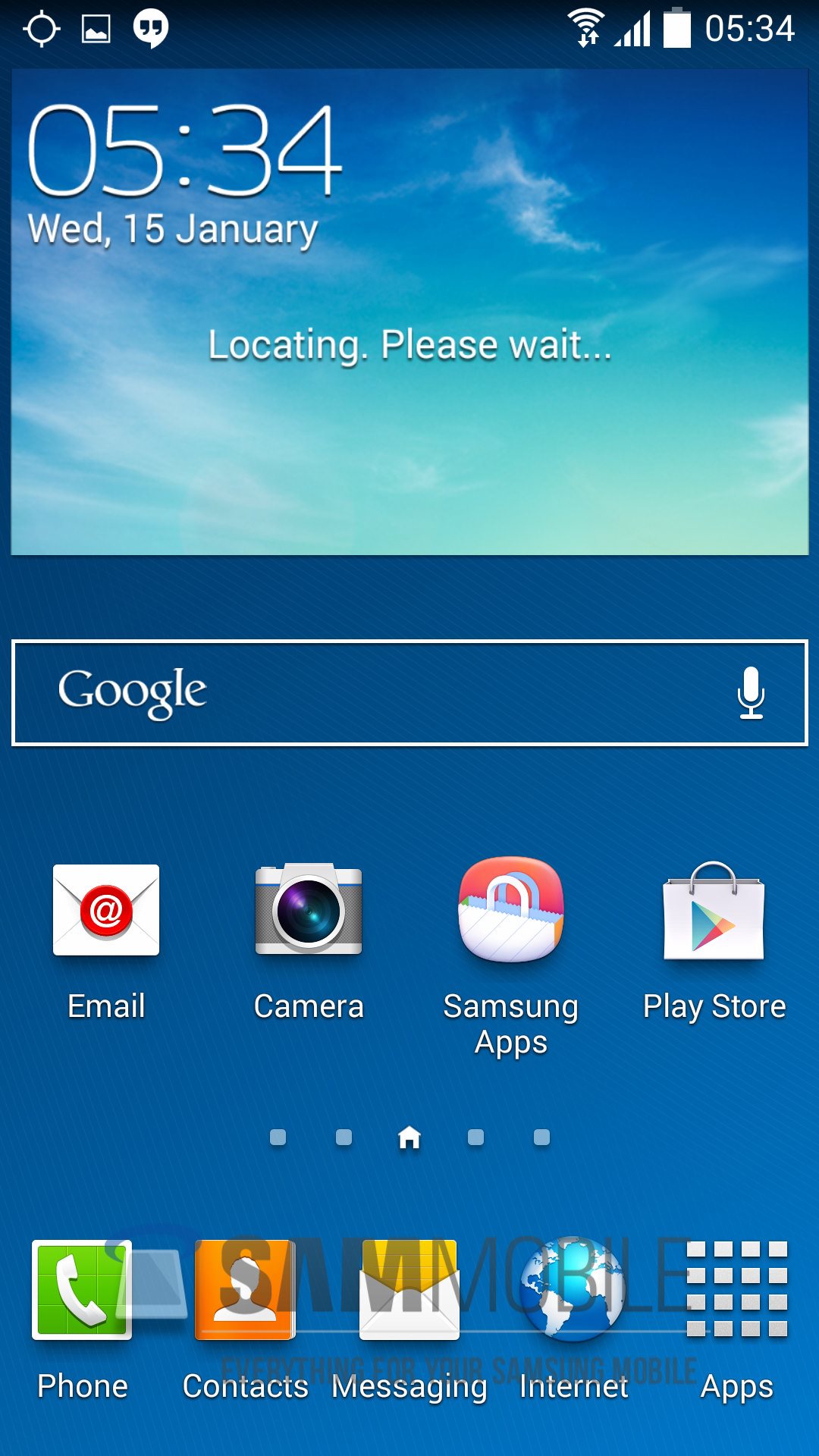

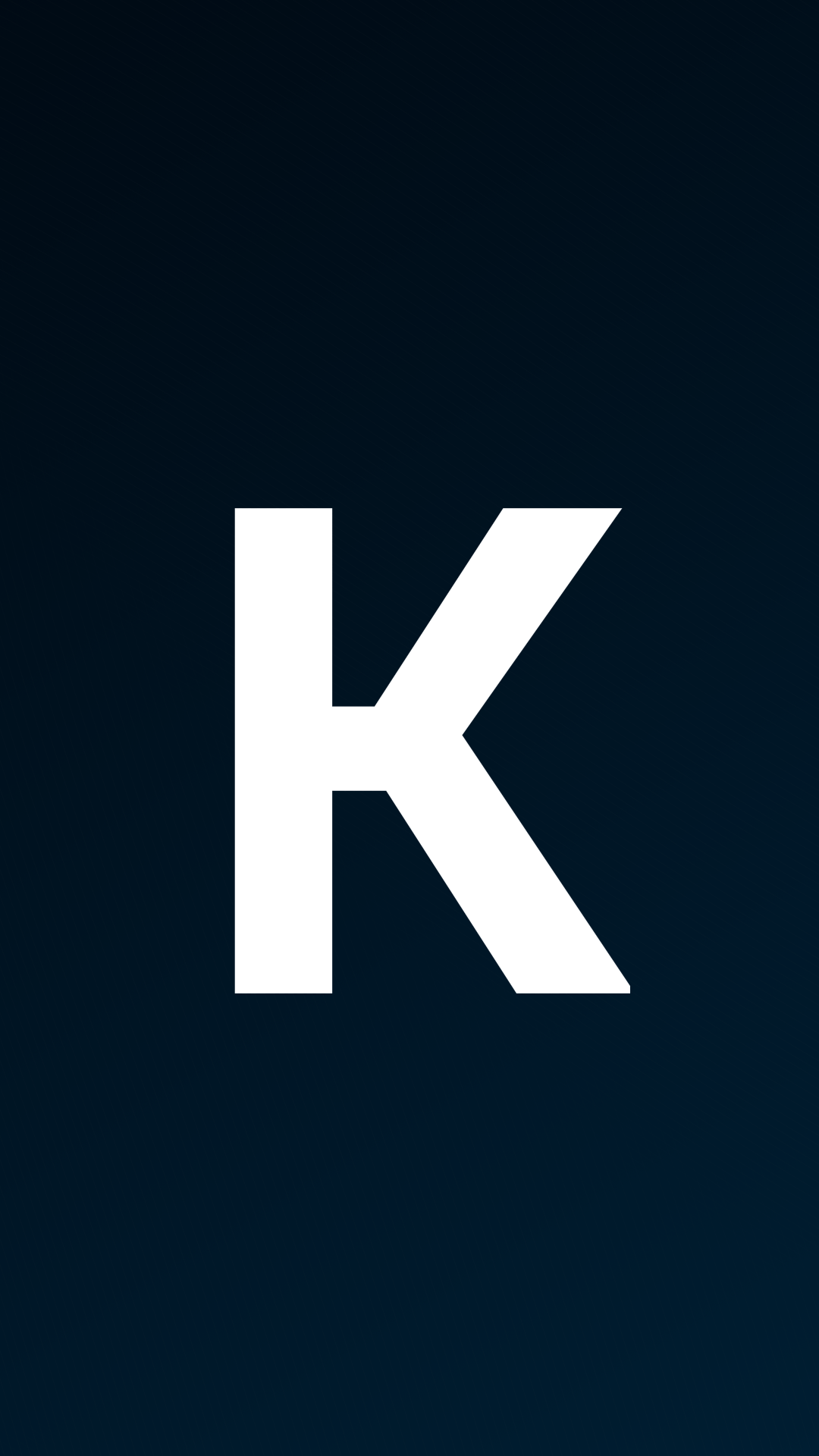

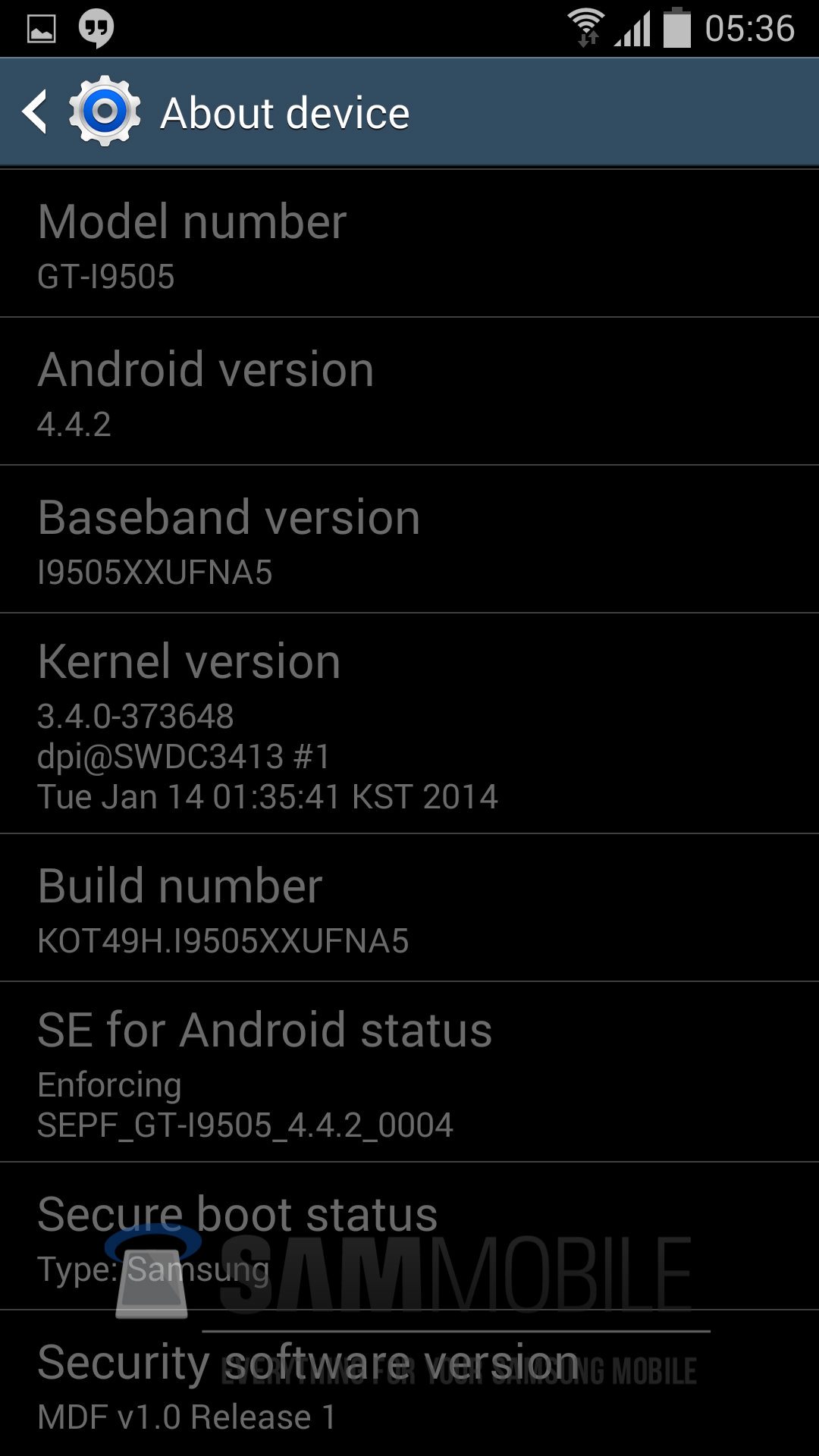

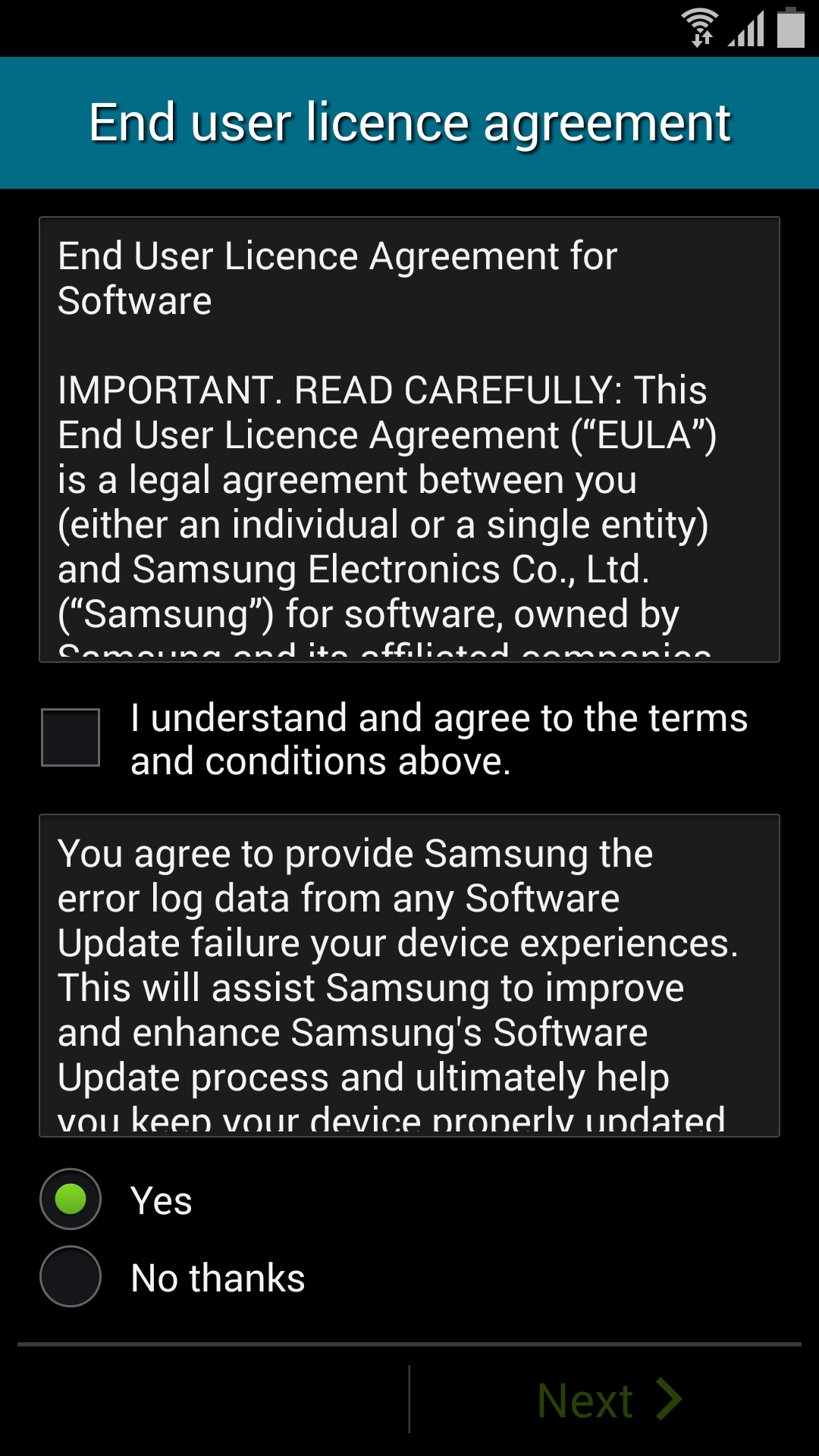

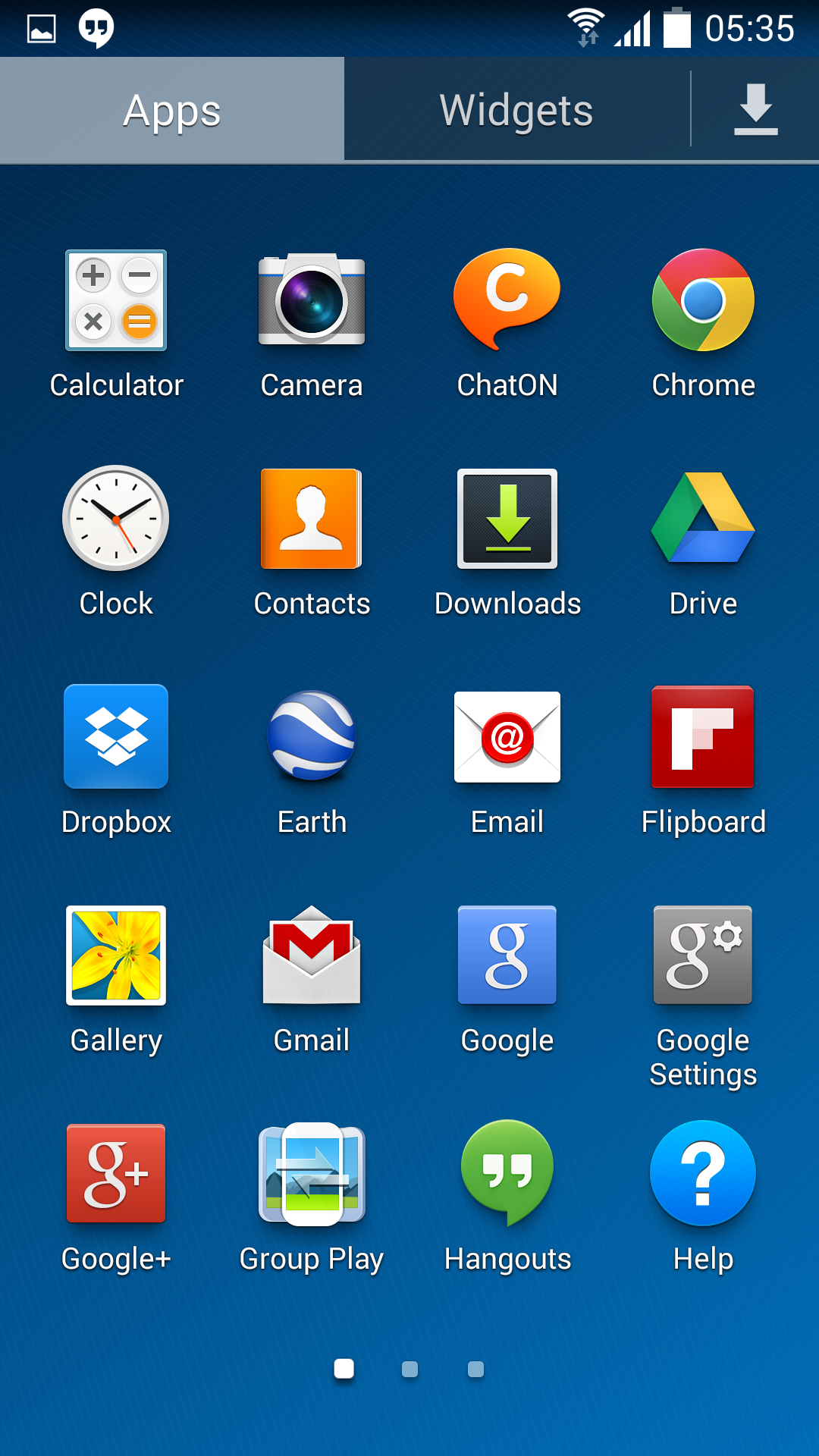

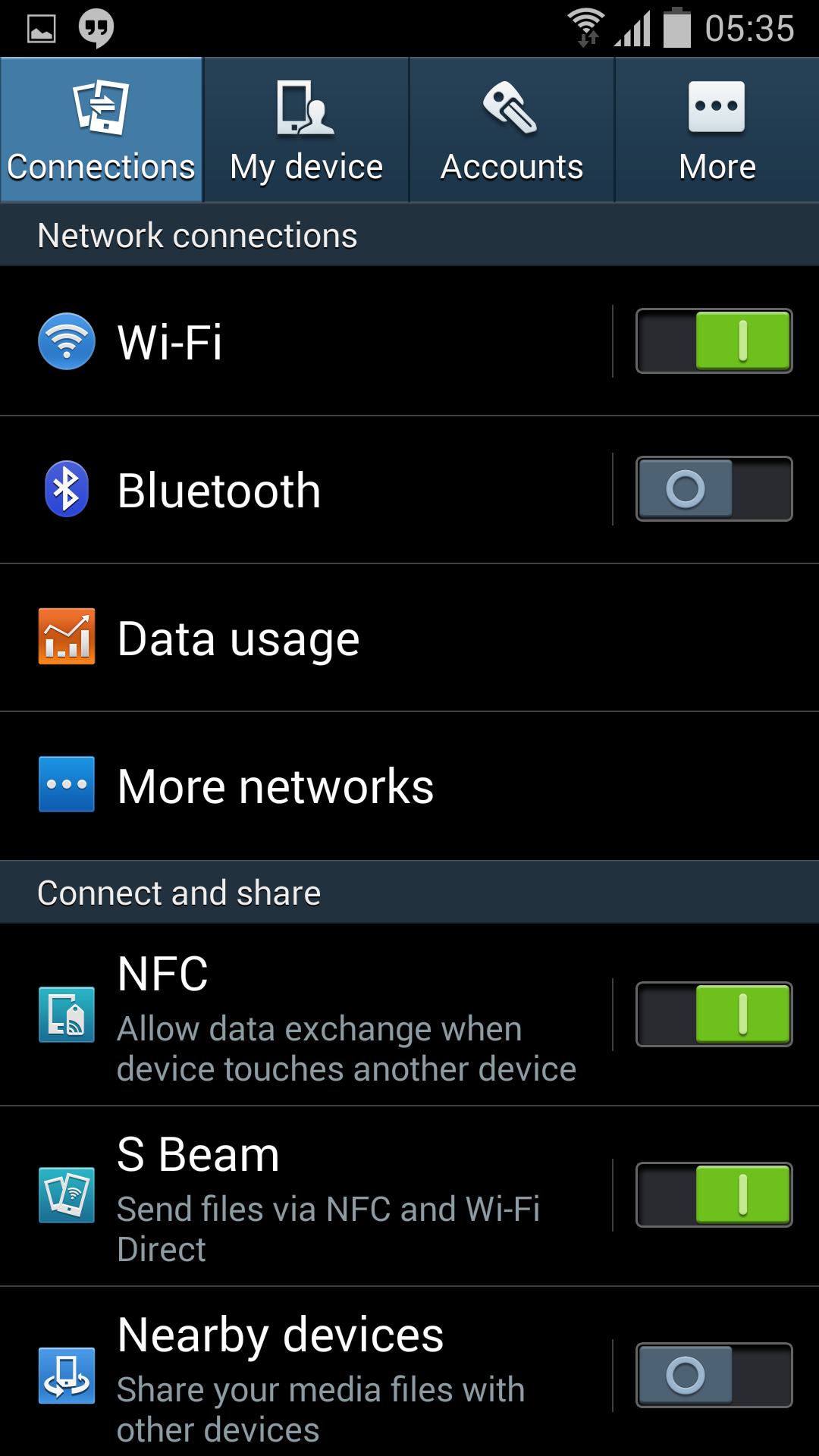

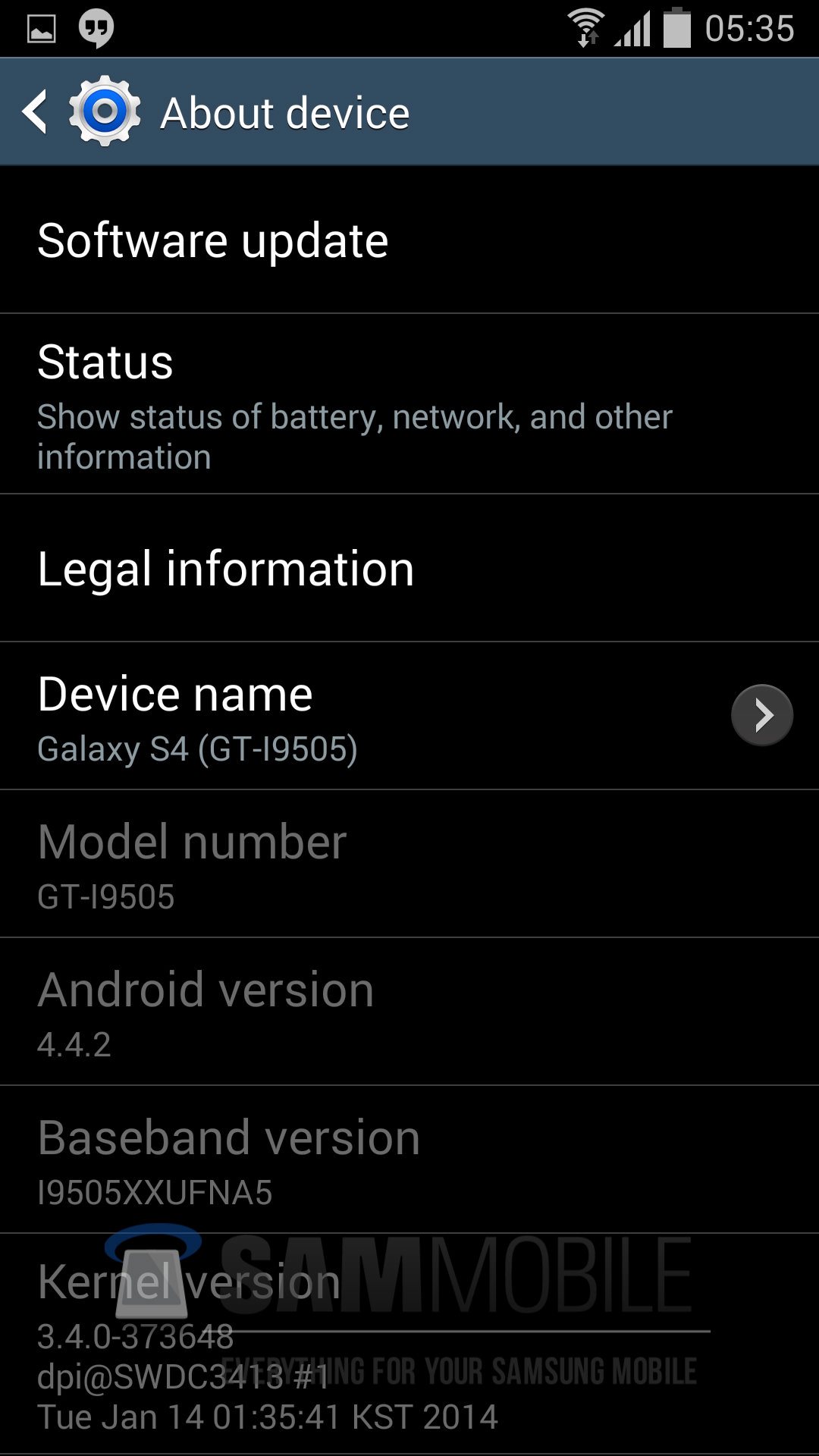

Screenshots
